Patent: MS08G
One-way turnstile is a kind of turnstile that only allows people to pass through in one direction, which means it mandates the control point is either an entry or an exit. Therefore, one-way turnstile is often used to divert crowds.
share:
Advantages Specifications

One-way Turnstile Video:

One-way Turnstile  Description:

One-way turnstile is a kind of turnstile that only allows people to pass through in one direction, which means it mandates the control point is either an entry or an exit. Therefore, a one-way turnstile is often used to divert crowds and enhance security.
With a miniature design and sturdy brushed 304 stainless steel housing, the MS08G is highly adaptable to the environment and can be installed in a variety of applications, including indoors and outdoors.
Sufficient internal space to support the integration of various card access systems and fingerprint access control readers.

One-way Turnstile Variations:

One-way traffic is not static, it can be changed to two-way traffic according to the needs of customers without changing the gate.
One-way turnstile can be divided into semi-automatic and fully automatic. The automatic anti-tailing effect is better. If you want to know more, please contact us.
Except for MS08G tripod turnstiles, full height turnstiles,  optical turnstiles and speed gates can be set to one-way traffic, various designs can be used for different buildings.

One-way Turnstile  Applications:

We all know that all turnstile gates can be configured for one-way traffic or two-way traffic. Some control points require one-way traffic, such as supermarkets, stadiums, playgrounds, attractions, cinemas, and more. Ony way turnstiles effectively prevent crowds from sneaking back without human monitoring.

One-way Turnstile Turnstile Dimension:

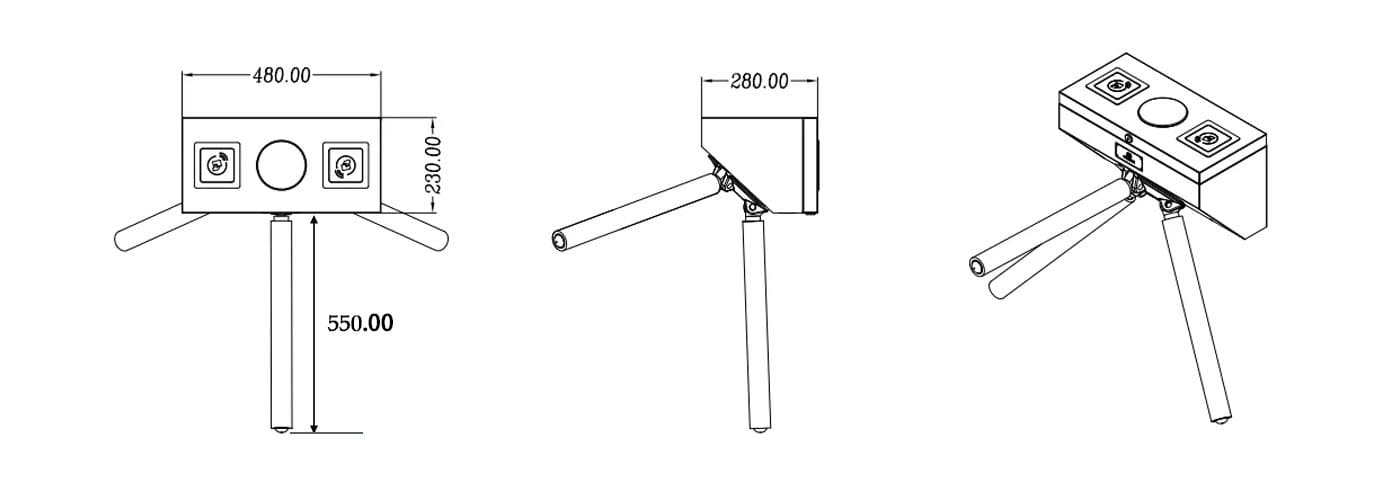

One-Way Turnstile Dimension:



Model No. MS08G
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 480*230*980mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor None
Passage Width 550mm
Opening/Closing 0.5 seconds
Flow Rate 30-35 person/min
Mechanism

Absorption of electromagnet/Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
