Swing Barrier

High Security Turnstiles

Name: High Security Turnstiles
Brand: 2024 Best Selling Turnstile Gates | Low-priced | 2 Years Warranty - Macrosafe
SKU: MS05B
Availability: InStock
Rating: 5 (1 reviews)

Patent: MS05B

Designed in a minimal cabinet with brushed stainless steel, high security turnstiles MS05B provides a larger opening size for applications where wide passageway is highly required, such as warehouse, supermarket, amusement park and more.

Online Inquiry

Advantages Specifications Dimension Options Gallery

Advantages

High Security Turnstile Video:

Why high security turnstiles are getting popular?

High security turnstiles are becoming more popular because of their ability to control and restrict access to secure areas. They have advanced features like biometric identification, optical scanners and facial recognition which make them harder to bypass. Additionally, they are designed to prevent unauthorized entry or tailgating, thereby increasing safety and reducing the risk of theft, terrorism, or other criminal activities.

These turnstiles are now used in a variety of settings, including airports, power plants, data centers, government buildings, and military bases. Their popularity is likely to continue to grow as security concerns increase worldwide.

High Security Turnstiles Installation Guide:

5 Advantages of high security turnstiles ( compare to other doors & gates)

1. Tighter Access Control: High security turnstiles are designed to allow only one person to pass through at a time, which greatly enhances access control. This reduces the risk of unauthorized individuals entering restricted areas.

2. Deterrent Effect: The imposing appearance of high security turnstiles can serve as a deterrent to potential intruders.

3. Integration: High security turnstiles can be integrated with a variety of access control systems, such as card readers, biometric scanners, and more. This improves the security of the system and enables organizations to easily track access.

4. Durability: High security turnstiles are built to withstand harsh conditions and heavy use, making them a cost-effective security investment. They are often made of sturdy materials such as stainless steel and can withstand both environmental factors and physical abuse.

5. Rapid Passage: High security turnstiles can allow for rapid passage when authorized individuals are entering or exiting through them. This saves time and can help prevent traffic jams during peak hours.

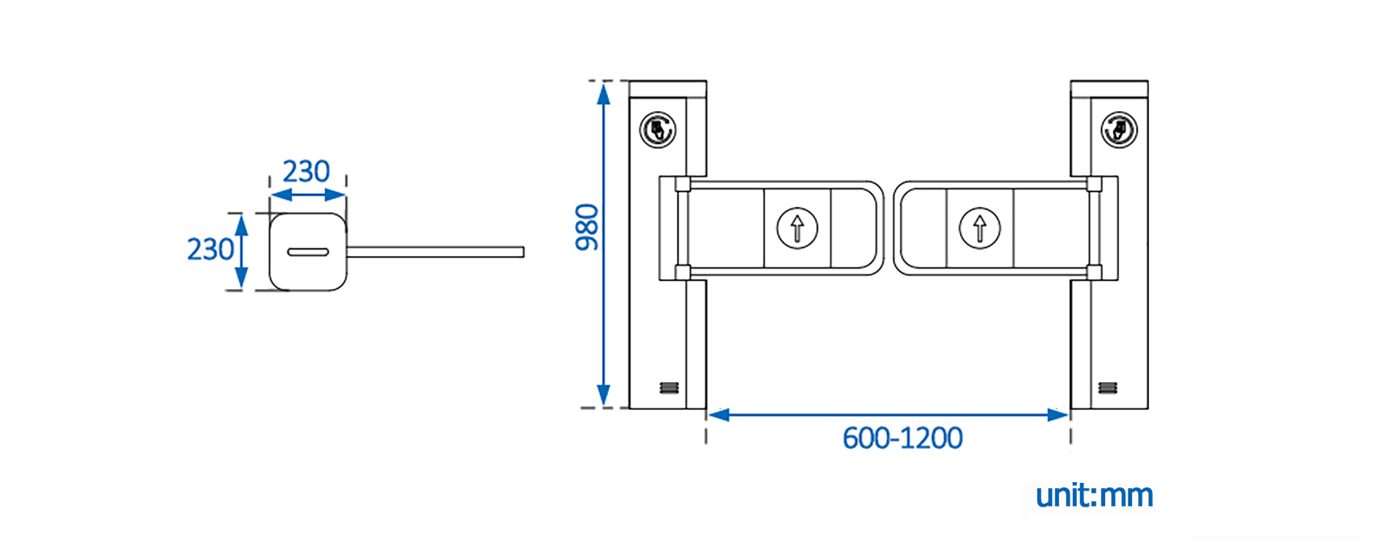

High Security Turntsiles Dimension:

High Security Turntsiles Features:

Minimal design occupy less space;

Automatic reset function: swing arms will lock automatically if nobody enter within 5s(Can be set);

Passage width from 500-1100mm, suitable for disabled and trolley access;

Swing barriers run smoothly with lose noise system;

With anti-collision movement, swing barriers will reset automatically if they are strong hit by bicycle or trolley;

Can be integrated with any type of access control systems;

Simple installation,easy operation and low maintenance;

Model No.	MS05B
Cabinet Material	SUS304/316 stainless steel
Swing Material	stainless steel or Plexi-glass
Unit Dimension(WLH)	230230980mm
Passing Direction	Uni-directional/Bi-directional
Photoelectric Sensor	None
Passage Width	600-1200mm
Opening/Closing	0.6 seconds
Flow Rate	40-45 person/min
Mechanism	Brushless motor
Power Supply	AC100-230V,50Hz
Voltage	from the AC (100–240) V, 50/60 Hz from a DC source 24 V
Application	Indoor and outdoor(Shelter)
Working Temperature	-25℃~+70℃
Operation Humidity	0 ~ 95% (No freeze)
MCBF	8,000,000 cycles
Anti-panic mode	Automatically open when power off
Communication	Dry contact, Relay signal, RS485

Flexible configurations available optionally up on request.

01 Cabinet Material

Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available：

Brushed 304 stainless steel（Regular）

Brushed 316 stainless steel

Polished 304 stainless steel

Polished 316 stainless steel

02 Cabinet Anti-fingerprint process

Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.

03 Cabinet Colors

In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.

04 Glass Etching

Support personalize glass barriers and side panels with etched artwork, logos or directions.

05 Panels Material

You can select plexi-glass or tempered glass for swing panels and/or filter panels.

06 Mechanism

Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.

07 Custom Illumination

Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.

*More options and customizations available on request.
